Ceramsite ball AFS30-35 refractory material for ladle block

Sale!

Ceramic sand 30 mesh is a good material as ladle filler sand with good high-temperature resistance. In the meantime, for its spherical shape, ceramic sand could recycle used for up to 10 times. Instead of silica sand in traditional lost foam casting(green sand casting), ceramic is a cost-effective sand that is also environment friendly and better for the operator’s health.

Ceramsite ball AFS30-35 refractory material for ladle block



Ceramsite ball AFS30-35 refractory material for ladle block is made from high-quality calcined bauxite through melting, screening, and blowing. Its spherical shape makes it suitable for ladle filler sand, as it reduces the contact area between sand particles, lowers the strength of the sintered layer, and facilitates pouring. Its low silicon content, high refractory temperature, and low thermal expansion coefficient mean that it expands minimally upon contact with molten steel, preventing molten steel penetration and making it suitable for ladle filler sand production.

Ceramsite ball AFS30-35

Ceramsite ball AFS30-35 refractory material for ladle block Features:
  1. High refractory temperature prevents over-sintering, reducing the thickness of the starting ladle mixtures sintering layer.
  2. The spherical particles of ceramic sand are used to make drainage sand. The sintering layer particles are in point contact, reducing the strength of the filler mess and facilitating steel pouring.
  3. The spherical shape of ceramsite sand particles creates a smooth surface and offers excellent fluidity, helping to increase pouring efficiency.
  4. Its low thermal expansion coefficient prevents cracking of the nozzle filler mess.
  5. Its chemical properties are stable, preventing molten steel penetration.



Physical index:
Refractoriness≥1800 °C
Mohs hardness6.5-7.5
Specific gravity:3.4g/cm3
Bulk density(LPD):1.95-2.05 g/cm3
Color:black brown
Grit shape:spherical Ball
PH value7.3
Thermal expansion coefficient6×10-6 /°C(20-1000°C)
Thermal conductivity0.698W/M.K(1200°C)
Thermal expansion ratio0.13%(10 min at 1000°C)
coefficient of angularity≤1.1
RoundnessMin 95%



Chemical composition:
ItemStandard ValueTypical Value
Al2O370-7270.65
SiO210-2521.87
Fe2O3≤32.40
TiO2≤3.53.32
K2O≤1.51.20
CaO≤0.450.28
MgO≤0.350.32
Na2O≤0.100.08
Specifications for Ceramsite ball AFS30-35 refractory material for ladle block:

20-40mesh,30mesh, AFS30-35

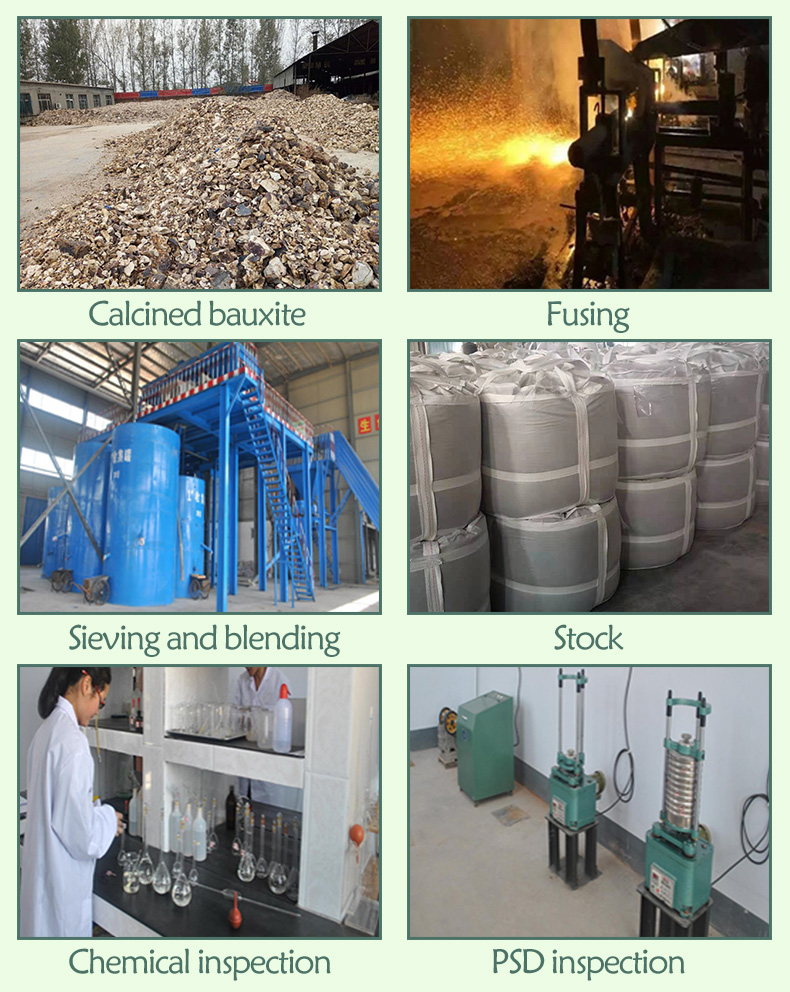

Production Process of Ceramsite ball AFS30-35 refractory material for ladle block:

ceramsite sand AFS30-35

Package of Ceramsite ball AFS30-35 refractory material for ladle block:
